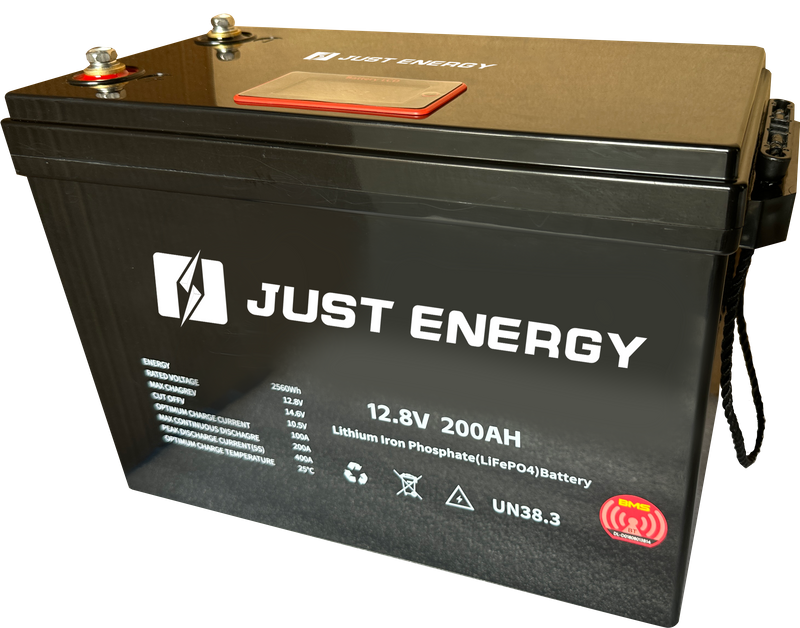

12.8V 200ah Lithium Ion Rechargeable Battery Portable Power Storage LiFePO4 Battery

Place Of Origin: Zhejiang, China (Mainland)
Size: 345*190*245mm
Weight: 20kg
Voltage: 12.8v
Nominal Capacity: 200ah
Warranty: 5years
Certificates: IEC62619/EN61000-6-1/EN61000-3/RoHS/UN38.3
Installation Type:Portable
Cycle Life:6000 cycles
Availability:
Quantity:
  • 12.8V 200AH

  • JUST

Product Description

12.8V 200ah Lithium Ion Rechargeable Battery Portable Power Storage LiFePO4 Battery







铅改锂 12.8V200AH





Technical specifications

Model 12.8v 200ah
Cell Chemistry LFP
Cell Configuration 4S1P
Nominal Energy (wh) 2560
Nominal Capactity (Ah) 200
Nominal Votage (V) 12.8

WorkingVotage

Range (VDC)

10.8~14.4
Max.Charge/Discharge Current(A) 100
BMS Communication CAN2.0/RS485





General Information

Dimension[L*W*H](mm) 345*190*245
Packing Dimension 395*250*305
Weight(kg) 20
Packing Weight (kg) 23
Permissible Altitude(m) <4000m(<>2000m derating)
Dispaly Scren LCD
IP Rating IP21
Working Temperature -20~60
Cycle Life 6000 cycles
Warranty 5 years
Instalation Type Portable
Certification IEC62619/EN61000-6-1/EN61000-3/ROHS/UN38.3
