  • 48V 100ah LiFePO4 Battery LFP Solar Rack Mount Energy Battery

48V 100ah LiFePO4 Battery LFP Solar Rack Mount Energy Battery

Scale your energy storage effortlessly with the JUST 48V 100Ah Rack Mount Battery. Designed to fit standard 19-inch server cabinets, this 3U height module packs 4.8kWh of reliable LiFePO4 power. Perfect for expandable solar banks, telecom base stations, and data center backups. Features 15S configuration and wide inverter compatibility via CAN/RS485.

CONTACT NOW

Product Advantages

1.High safety and reliability
High-quality lithium batteries,intelligent battery management system, long lifespan,with a 5-year warranty.
2.Enjoy enduring power Long endurance time
stable power supply/ Reduce frequent charging, Cost-effective /Quick installation, plug and play.
3.Vertical layout design
Rack-mounted installation,space-saving.


Technical specifications

Model 48V 100ah
Cell Chemistry LFP
Cell Configuration 15S1P
Nominal Energy (wh) 4800
Nominal Capacity (Ah) 100
Nominal Voltage (V) 48
Working Voltage Range (VDC) 40.5~54
Max.Charge/Discharge Current (A) 100
BMS Communication CAN2.0/RS485/RS232


General Information

Dimension[L*W*H](mm) 440*450*134
Packing Dimension 535*535*220
Weight(kg) 45
Packing Weight (kg) 62
Permissible Altitude(m) <4000m(<>2000m derating)
Display Screen LCD
IP Rating IP21
Working Temperature -20~60
Cycle Life 6000 cycles
Warranty 5 years
Installation Type Rack mounted
Certification IEC62619/EN61000-6-1/EN61000-3/ROHS/UN38.3


Professional Grade Performance

· Standard 19-inch / 3U Design:

  • With a height of just 134mm (3U) and standard mounting ears, this battery is engineered for vertical layout efficiency. You can stack multiple units in a single cabinet to achieve 20kWh, 30kWh, or more in a compact footprint.

    · 15S LiFePO4 Technology:
    Utilizing a 15S1P cell configuration, this battery operates at a nominal 48V, making it perfectly matched for telecom rectifiers and specific hybrid inverters requiring a 40.5V~54V range.

    · Smart Communication:
    Stop guessing your battery status. The integrated BMS communicates seamlessly via CAN 2.0 and RS485, sharing real-time data (SOC, SOH, Voltage) with major inverter brands. The front-facing LCD Screen provides instant visual diagnostics.

    · Safe & Durable:
    Built for longevity with a 6000-cycle life. The robust metal casing provides excellent thermal management and physical protection, ensuring safety in demanding IT or industrial environments.

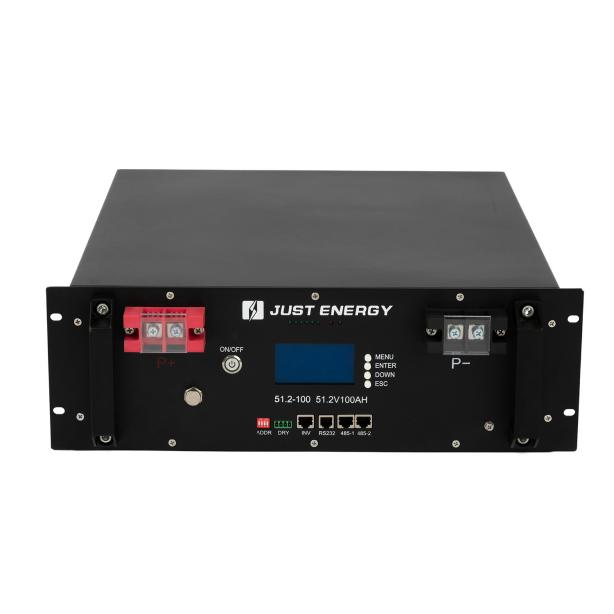

 JUST 48V 100Ah Rack Mount LiFePO4 Battery
