  • 51.2V 314Ah LiFePO4 Battery LFP Solar Rack-mounted Energy Battery
  • 51.2V 314Ah LiFePO4 Battery LFP Solar Rack-mounted Energy Battery

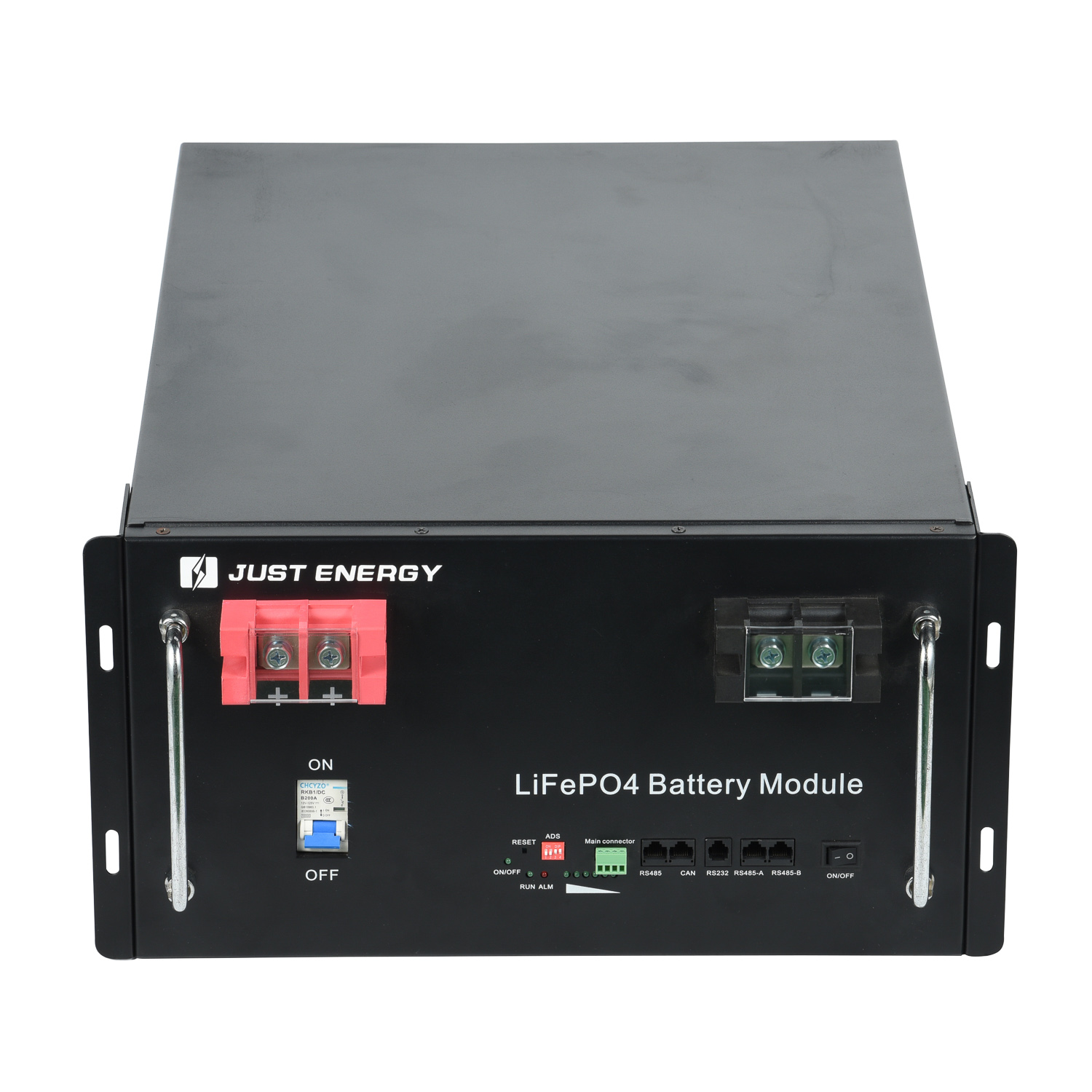

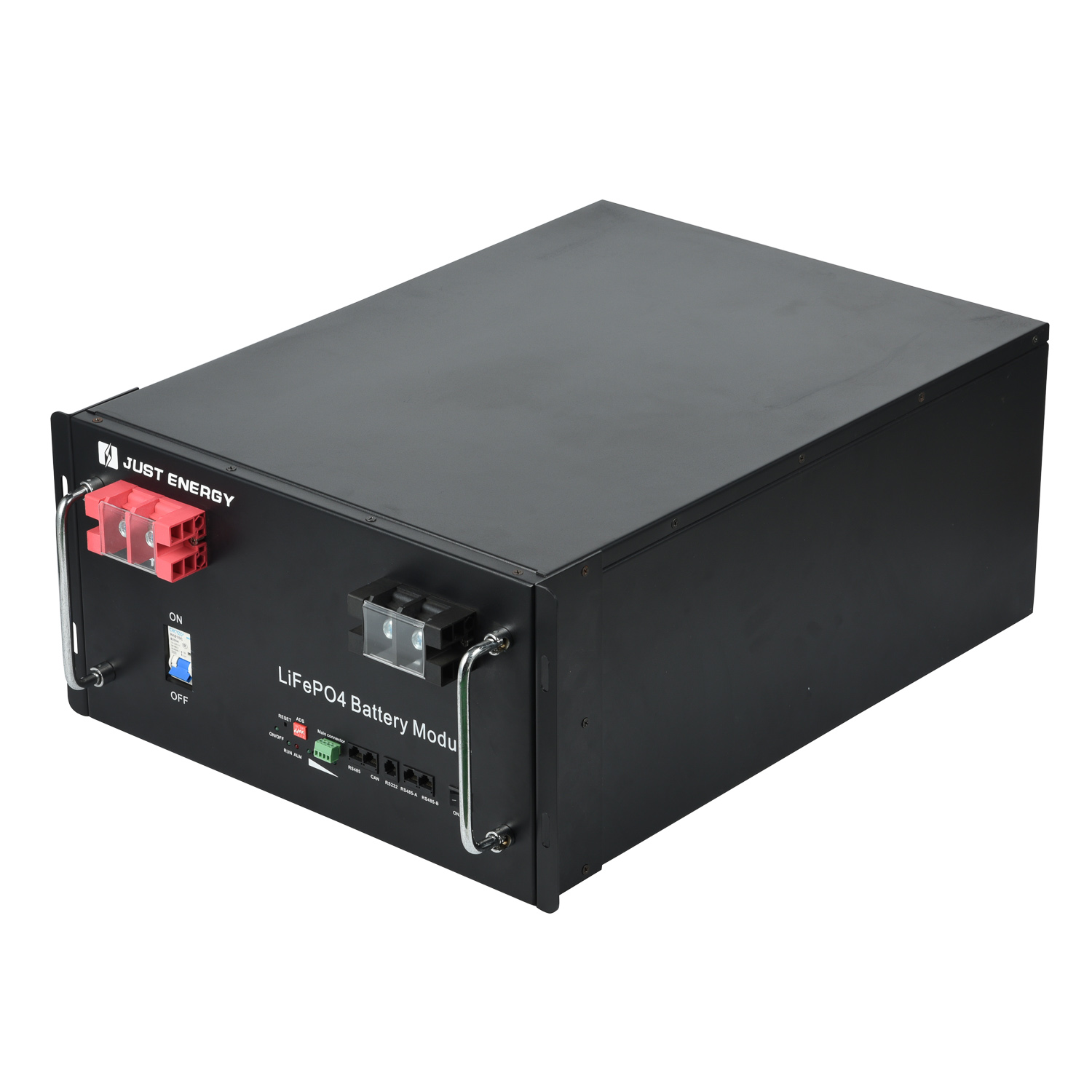

51.2V 314Ah LiFePO4 Battery LFP Solar Rack-mounted Energy Battery

Scale your energy storage effortlessly with the JUST 51.2V 314Ah Rack-mounted Battery. Designed to fit standard 19-inch server cabinets, this 5U height module packs 16kWh of reliable LiFePO4 power. Perfect for expandable solar banks, telecom base stations, and data center backups. Features 15S configuration and wide inverter compatibility via CAN/RS485.

CONTACT NOW

Product Advantages

1.High safety and reliability
High-quality lithium batteries,intelligent battery management system, long lifespan,with a 5-year warranty.
2.Enjoy enduring power Long endurance time
stable power supply/ Reduce frequent charging, Cost-effective /Quick installation, plug and play.
3.Vertical layout design
Rack-mounted installation,space-saving.


Technical specifications

Model 51.2V 314Ah
Cell Chemistry LFP
Cell Configuration 16S1P
Nominal Energy (wh) 16076
Nominal Capacity (Ah) 314
Nominal Voltage (V) 51.2
Working Voltage Range (VDC)

40.0~58.4
Max.Charge/Discharge Current (A) 100
BMS Communication CAN2.0/RS485/RS232


General Information

Dimension[L*W*H](mm) 750.5*442*224
Weight(kg) 130
Permissible Altitude(m) <4000m(<>2000m derating)
Display Screen LCD
IP Rating IP21
Working Temperature -20~60
Cycle Life 6000 cycles
Warranty 5 years
Installation Type Rack/Floor Mounting
Certification

CE,RoHS,UN38.3,MSDS,ISO9001,IEC


Professional Grade Performance

· Standard 19-inch / 5U Design:

  • With a height of just 224mm (5U) and standard mounting ears, this battery is engineered for vertical layout efficiency. You can stack multiple units in a single cabinet to achieve 30kWh, 45kWh, or more in a compact footprint.

    · 16S LiFePO4 Technology:
    Utilizing a 16S1P cell configuration, this battery operates at a nominal 51.2V, making it perfectly matched for telecom rectifiers and specific hybrid inverters requiring a 44.8V~58.4V range.

    · Smart Communication:
    Stop guessing your battery status. The integrated BMS communicates seamlessly via CAN 2.0 and RS485, sharing real-time data (SOC, SOH, Voltage) with major inverter brands. The front-facing LCD Screen provides instant visual diagnostics.

    · Safe & Durable:
    Built for longevity with a 6000-cycle life. The robust metal casing provides excellent thermal management and physical protection, ensuring safety in demanding IT or industrial environments.
